KONUMXX - Antenna Family
KONUMXX - Antenna Family

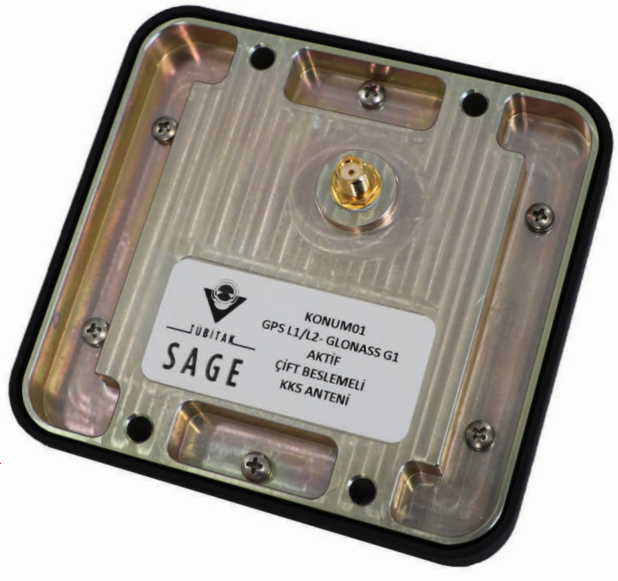

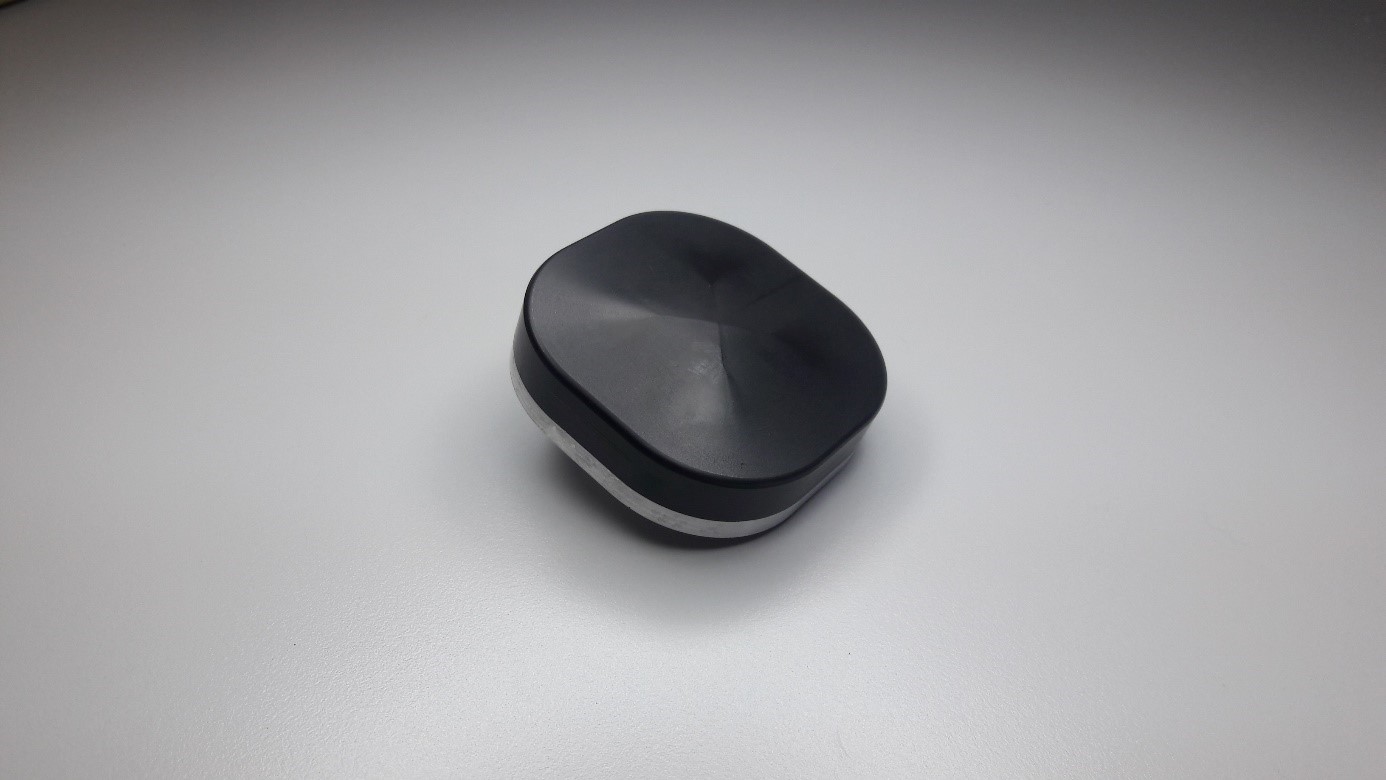

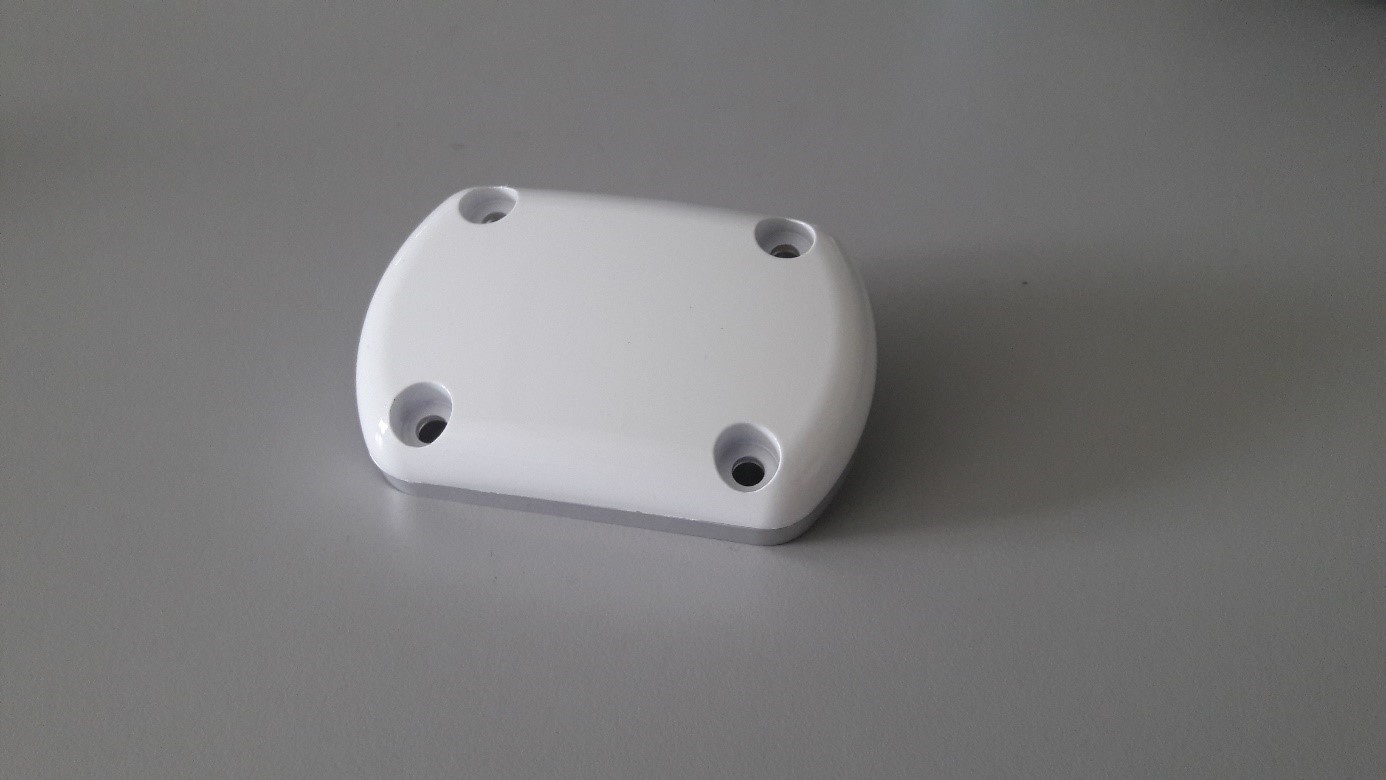

GPS L1/L2-GLONASS G1 or GPS L1/L5 - GLONASS G1 Active or Passive GPS Antenna
- The KonumXX antenna family operates in GPS L1/L2- Glonass G1 or GPS L1/L5- Glonass G1 frequency bands with M-Code support. KonumXX can be easily integrated into relevant military platforms and can withstand harsh military environmental conditions.
- Dual feed ceramic technology is used in the antennas. This ensures circular polarization over the entire bandwidth.
- Double feed increases position accuracy by preventing the detection of signals from multiple reflections.
- The low-noise signal amplifier uses filters to filter out out-of-band signals.

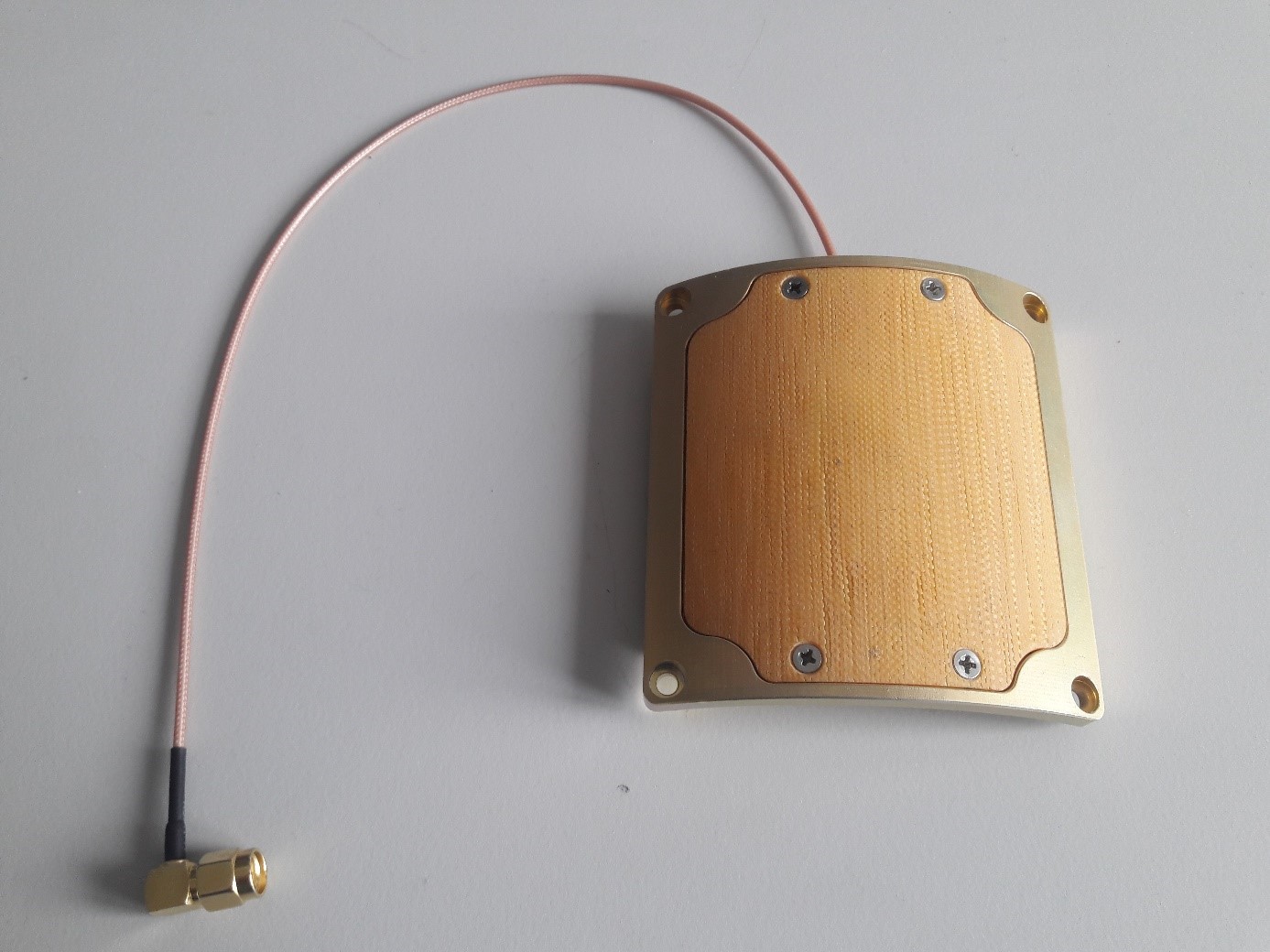

- Body compatible, high temperature resistant antennas are also produced.
- As TÜBİTAK SAGE, we are capable of producing alternative solutions for antenna production in different geometries and bands to meet your specific requirements.
* Antennas are built to meet MIL-STD-810G standards for different platforms.
* Please contact us for more information about the products.
KONUMXX Technical Specifications
Electrical
Frequency
GPS L1/GPS L2 GLONASS G1 or GPS L1/L5 GLONASS G1
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Right Hand Polarization
Antenna Element Gain
3 dBic (typical)
Antenna Pattern
Hemisphere (approximately)
Mechanical and Environmental
Weight
180 gr
(maximum)
Temperature
-55°C to +85°C
Connector (Optional)
SMA-Female
Color (Optional)
White, Black, Green etc.
High Temperature Radome (Optional)
Typical 400 °C
Power Requirement
Active Version
30-40 mA @ 5-28 Vdc
LNA Specifications (Active Antenna)
LNA Gain (optional)
25dB , 35 dB ,45 dB
LNA Noise Figure
3.5 dB (maximum)
Voltage
5-28 Vdc
Current
< 40 mA
LNA P1dB Output
+13 dBm
KONUMXX Technical Specifications
Operating Frequency
- GPS L1/L2 or GPS L1/L5
- GLONASS G1
Performance
- Antenna Gain (Passive-Typical): 4 dBic
- VSWR: ≤ 2,0 : 1
- Noise Figure: 3.5 dB (max.) (active antenna)
- Amplified Gain: 35-40 dB ± 2 dB (active antenna)

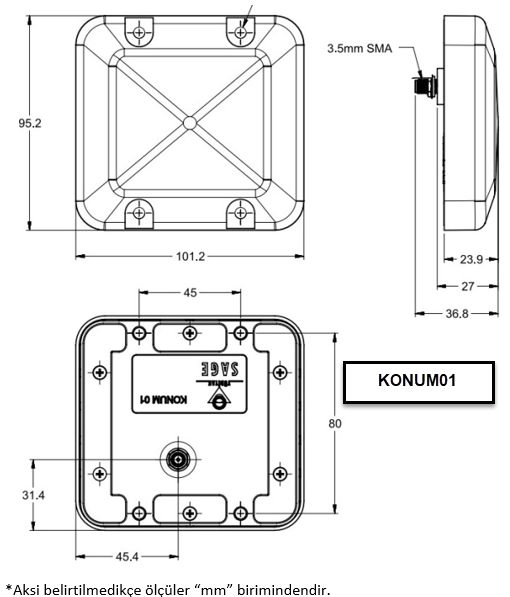

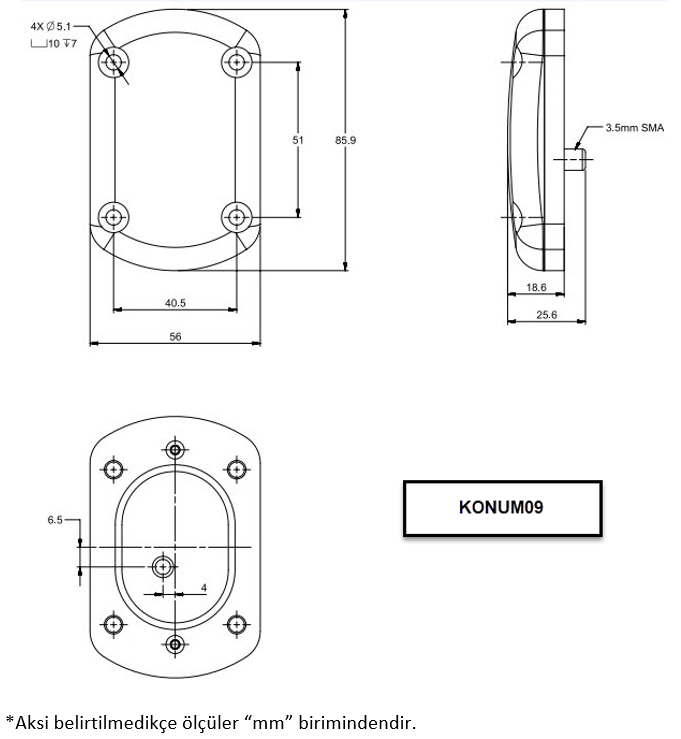

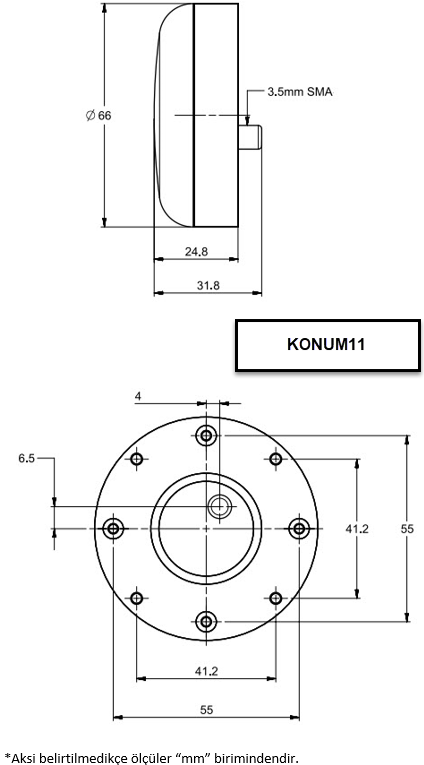

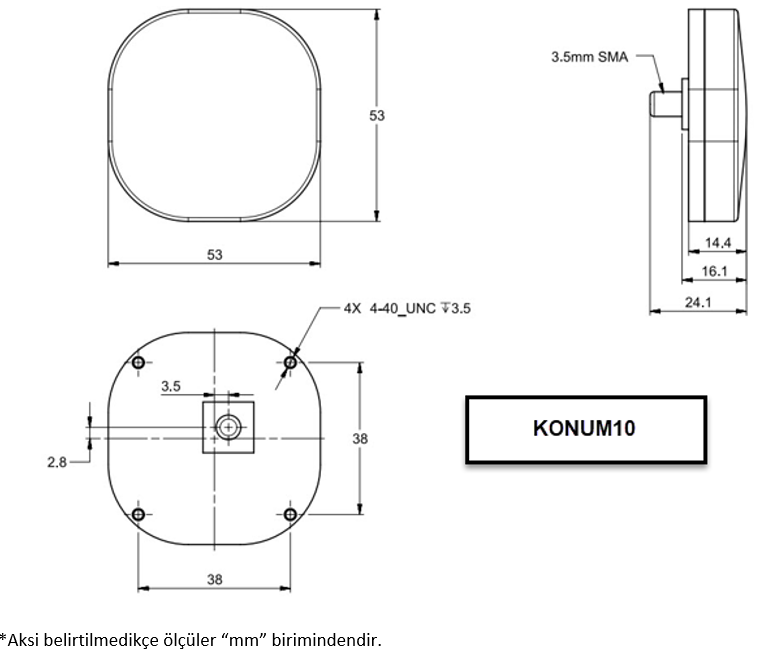

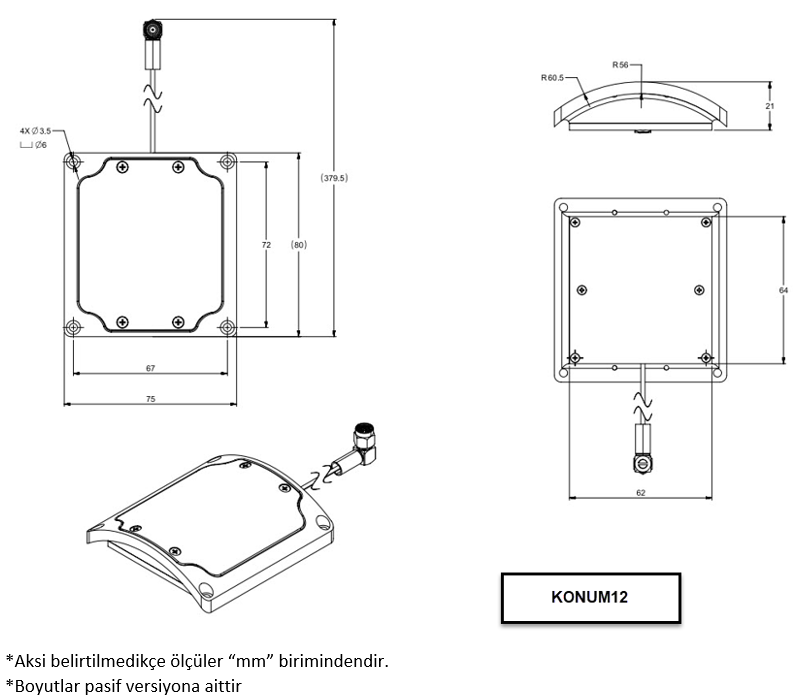

Physical Characteristics
- RF connector: 50 Ω SMA Female, TNC-Female
- Assembly Outside the Body
Power Requirement
- 30-40 mA @ 5-28 Vdc
Environmental Specifications (MIL-STD-810G)
- Altitude: > 40,000 ft
- Temperature -55°C + 85°C
- Shock 40 g
- Vibration 6 Grms
* Antennas are built to meet MIL-STD-810G standards for different platforms.
* Please contact us for more information about the products.
