SOM
Family of Medium-Range Ammunition Launched on the Surface

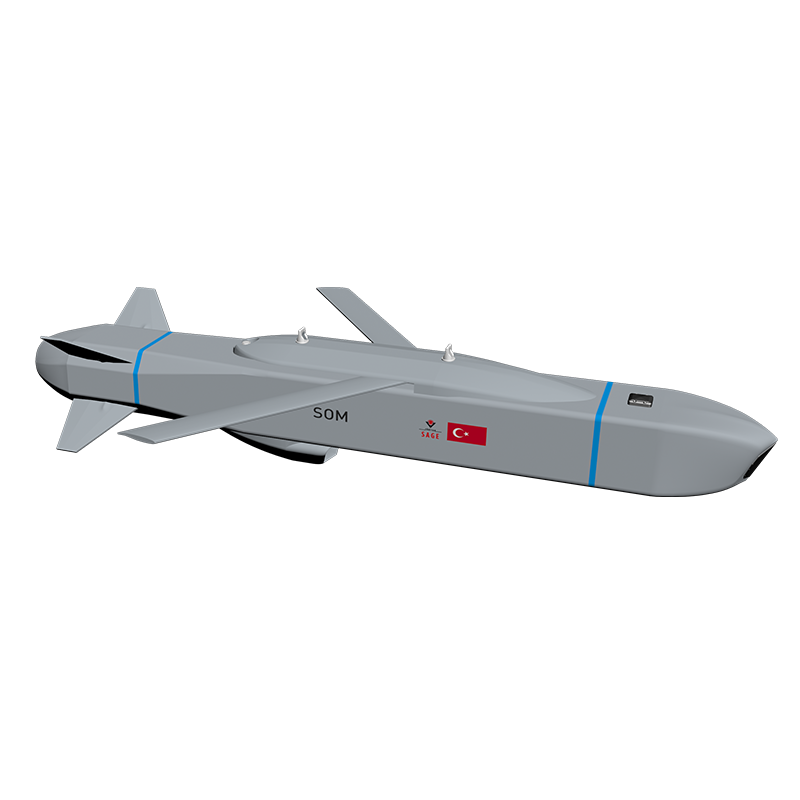

The SOM missile is an air-to-surface medium-range cruise missile with an effective offensive capability against fixed/stationary surface and moving surface targets, enabling targets to be hit with great accuracy without entering the effective range of air defense systems.
SOM-A ve SOM-B1 füzeleri, 2011 yılından itibaren TSK envanterinde yer almakta olup sahada kendini kanıtlamış silah sistemleridir (TRL-9). Diğer SOM varyantlarından ardışık delici harp başlıklı SOM-B2 ile su üstü hedeflere karşı kullanım ve veribağı yetenekleri eklenmiş SOM-C1/C2 varyantlarının doğrulama çalışmaları ve F-35, F-16 ve Silahlı İnsansız Hava Araçları (SİHA’lar) ile uyumlu olarak tasarlanan SOM-J varyantının geliştirme/doğrulama çalışmaları devam etmektedir.
Activities for the development and integration of indigenous sub-components for SOM missiles, as well as the integration of SOM missiles on different platforms are also being carried out.
SOM Capabilities
SOM-A Missile
Missile weight ~1,350 lb. (620 kg)
It is the first variant of the SOM Weapon System Family to be developed.
High Explosive Pressure-Particle Impact Warhead
Global Positioning System (GPS)
Inertial Navigation System (INS)
Earth Reference Navigation System (YRNS)
SOM-B1 Missile
Missile weight ~1,350 lb. (620 kg)
High Explosive Pressure-Particle Impact Warhead
Global Positioning System (GPS)
Inertial Navigation System (INS)
Earth Reference Navigation System (YRNS)
Infrared Imaging (IRI) Seeker Head
Automatic Target Acquisition (OHA)
SOM-B2 Missile
Missile weight ~1,450 lb. (660 kg)
Sequential Penetrating Warhead
Global Positioning System (GPS)
Inertial Navigation System (INS)
Earth Reference Navigation System (YRNS)
Infrared Imaging (IRI) Seeker Head
Automatic Target Acquisition (OHA)
SOM-C1 Missile
Missile weight ~1,350 lb. (620 kg)
High Explosive Pressure-Particle Impact Warhead
Global Positioning System (GPS)
Inertial Navigation System (INS)
Earth Reference Navigation System (YRNS)
Infrared Imaging (IRI) Seeker Head
Automatic Target Acquisition (OHA)
Data Bag
Ability to Attack Surface Targets
SOM-C2 Missile
Missile weight ~1,350 lb. (620 kg)
Sequential Penetrating Warhead
Global Positioning System (GPS)
Inertial Navigation System (INS)
Earth Reference Navigation System (YRNS)
Infrared Imaging (IRI) Seeker Head
Automatic Target Acquisition (OHA)
Data Bag
Ability to Attack Surface Targets
Watch the movie
SOM - Stand-Off Missile
SOM-J
Medium Range Ammunition-J

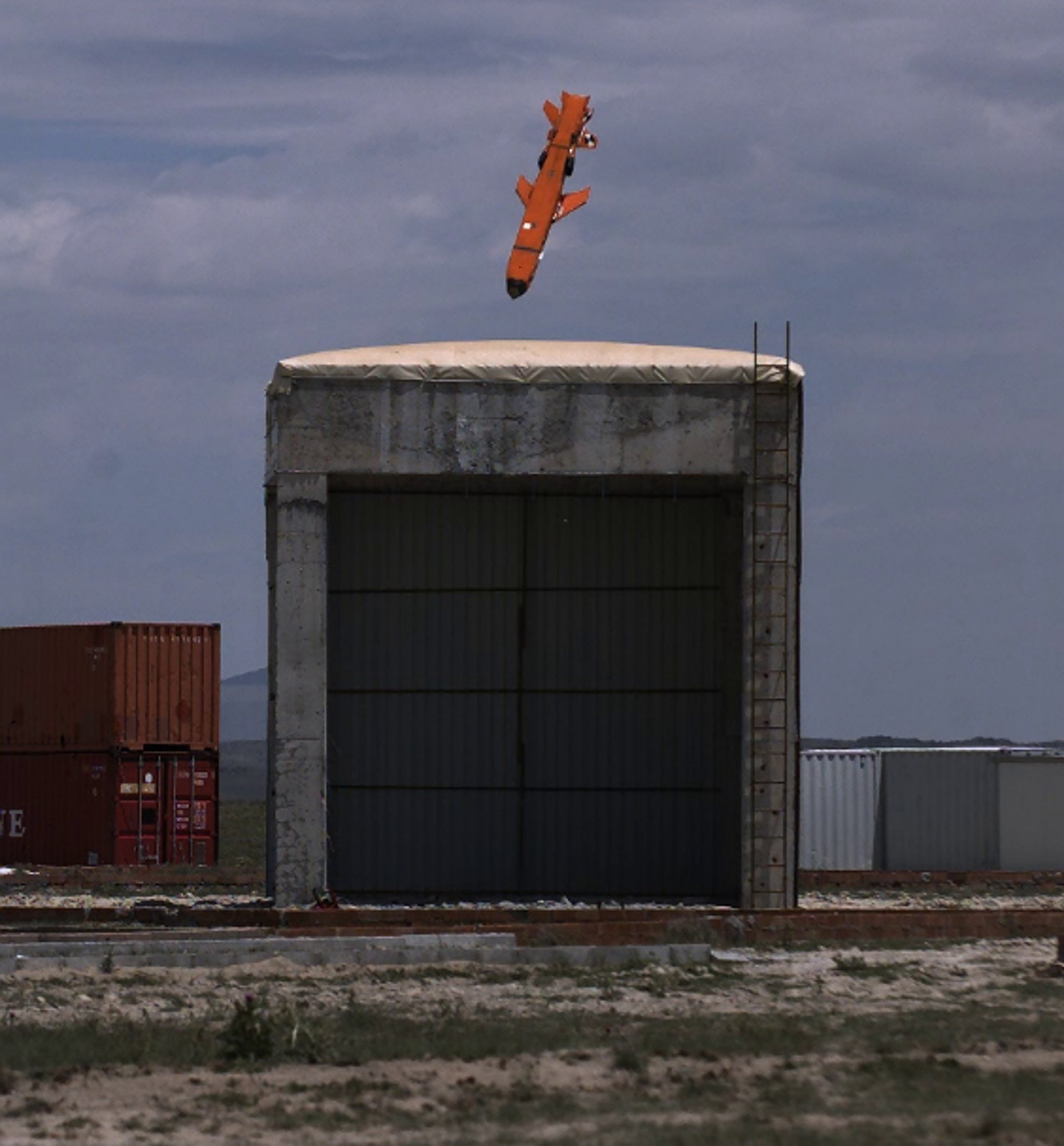

SOM J; SOM Silah Sistemi Ailesi’nin F-35 (JSF) dâhilî silah istasyonlarına, F-16 ve Silahlı İnsansız Hava Araçlarına (SİHA’lara) uyumlu olarak geliştirilmiş bir üyesi olup yoğun şekilde korunan hareketli su üstü ve sabit/durağan satıh hedeflerine taarruz yeteneğine sahiptir.
SOM-J Capabilities
Missile Weight ~1,100 lb. (500 kg)
Partial Penetrating Warhead
Global Positioning System (GPS)
Inertial Navigation System (INS)
Earth Reference Navigation System (YRNS)
Infrared Imaging (IRI) Seeker Head
Automatic Target Acquisition (OHA)
Post-Shot Control Capability
Universal Weapon Interface Compatibility
SOM Missiles Comparison
| MISSILES | WARHEAD | GUIDING | PLATFORMS | RANGE |
|---|---|---|---|---|
| SOM-A | High Explosive Pressure - Particle Impact Warhead | GPS / INS / TRN |
F-4E / 2020 F-16 |
250 km 130 NM+ |
| SOM-B1 | High Explosive Pressure - Particle Impact Warhead |
KKS / ANS / YRNS / KÖG SEEKER + ATA |
F-4E / 2020 F-16 |
250 km 130 NM+ |
| SOM-B2 | Sequential Penetrating Warhead |
KKS / ANS / YRNS / KÖG SEEKER + ATA |
F-4E / 2020 F-16 |
250 km 130 NM+ |
| SOM-J | Partial Penetrating Warhead |
KKS / ANS / YRNS / KÖG SEEKER + ATA |
F-16 F-35 (Internal Station) SİHA, KAAN |
185 km+ 100 NM+ |
