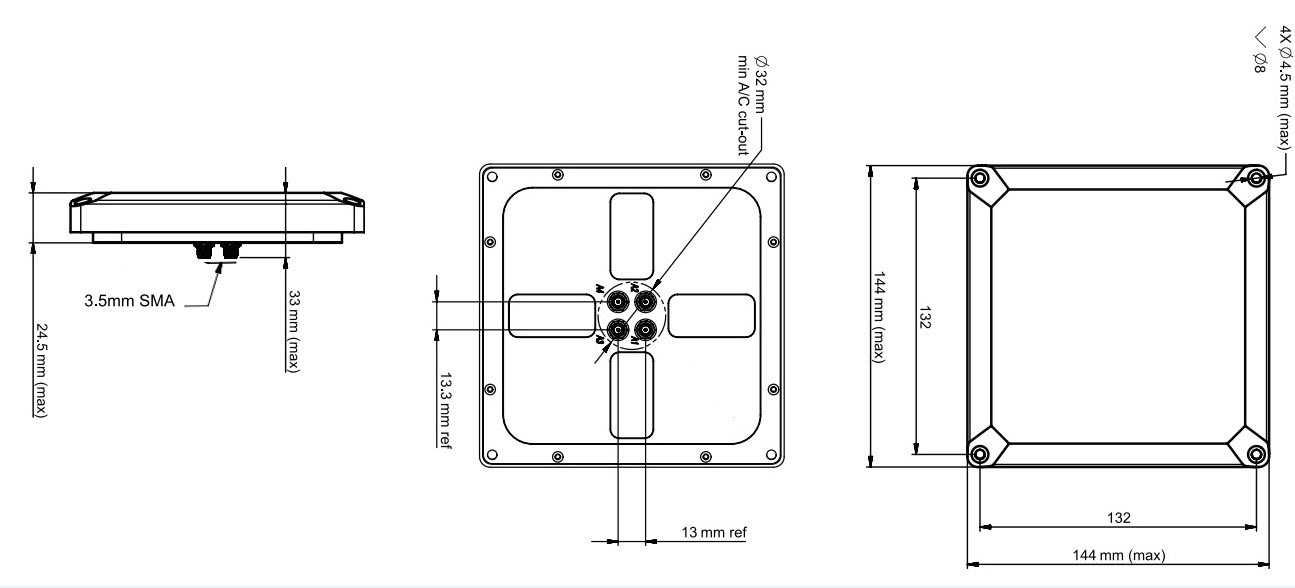

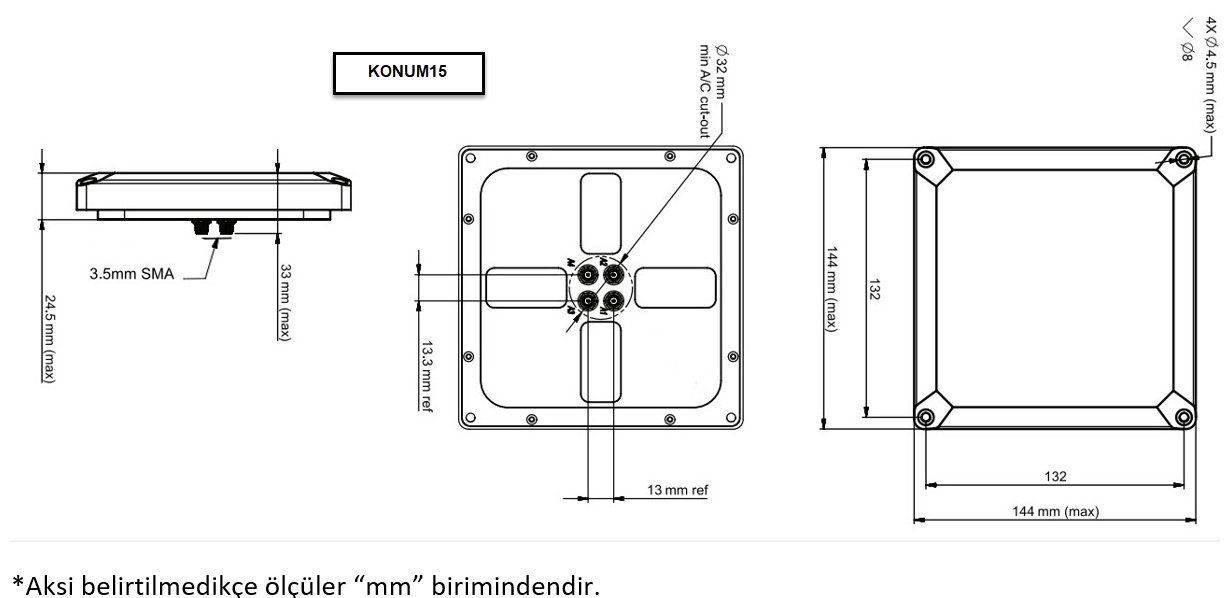

KONUM15
ACTIVE/PASSIVE - GPS L1 - GLONASS G1 or GPS L1/L2 - GLONASS G1 or GPS L1/L5-GLONASS G1 - 144x144 mm² - 4 Elements Array
The Konum15 antenna works in GPS L1/L2 - GLONASS G1 or GPS L1/L5 - GLONASS G1 frequency bands to support M-Code. Konum15 can be easily integrated into the relevant military platforms (UAV, UCAV, Ammunition, etc.) and is resistant to harsh military environmental conditions. This antenna can be used with any 4 or 8 element digital antenna control unit.
- The antenna has dual feed ceramic technology which provides truly circular response over entire antenna bandwidth.
- Dual feed provides superior rejection of cross polarized signals (multi-path).
- The antenna can be active or passive.
- Additional projection from near band signals is provided by 2-stage integrated band pass filtering with diode limiters for active configuration.
TÜBİTAK-SAGE has ability to produce alternative solutions for fixed radiation pattern Global Positioning System (GPS) antenna with different bands and geometries to meet your specific requirements.
* The antenna is designed and produced to meet requirement of MIL-STD-810G for different platforms.
KONUM15 Technical Specifications
Electrical
Frequency
GPS L1/GPS L2 GLONASS G1 or GPS L1/GPS L5 GLONASS G1
Number of Elements
4
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Right Hand Polarization
Antenna Gain
3 dBic (typical)
Antenna Pattern
Hemispherical
Mechanical and Environmental
Weight
770 g (maximum)
Temperature
-55°C to +85°C
Connector (Optional)
SMA-Female
Color (Optional)
Gloss White, Black, Camo green etc.
High Temperature Radome (Optional)
Typical 400 °C
Power Requirement
Active Version
30-40 mA @ 5-28 Vdc
Typical LNA Performance
LNA gain (Optional)
25 dB , 35 dB , 45 dB
LNA Noise Figure
3.5 dB (max)
Voltage
5-28 Vdc
Current
< 40 mA
LNA P1dB Output
+13 dBm
KONUM21
KONUM21 - PASSIVE - GPS L1 - GLONASS G1 or GPS L1/L2-GLONASS G1 - 105x105 mm² - 4 Elements Array
The Konum21 antenna works in GPS L1/L2 - GLONASS G1 frequency bands to support M-Code. Konum15 has a structure that can be easily integrated into the relevant military platforms (UAV, UCAV, Ammunition, etc.) and is resistant to harsh military environmental conditions.
- The antenna has dual feed ceramic technology which provides truly circular response over entire antenna bandwidth.
- Dual feed provides superior rejection of cross polarized signals (multi-path).
TÜBİTAK-SAGE has ability to produce alternative solutions for fixed radiation pattern Global Positioning System (GPS) antenna with different bands and geometries to meet your specific requirements.
* The antenna is designed and produced to meet requirement of MIL-STD-810G for different platforms.
KONUM21 Technical Specifications
Electrical
Frequency
GPS L1/GPS L2 GLONASS G1
Number of Elements
4
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Right Hand Polarization
Antenna Gain
3 dBic (typical)
Antenna Pattern
Hemispherical
Mechanical and Environmental
Weight
520 g (max)
Temperature
-55°C to +85°C
Connector (Optional)
SMA-Female
Color (Optional)
Gloss White, Black, Camo green etc.
High Temperature Radome (Optional)
Typical 400 °C

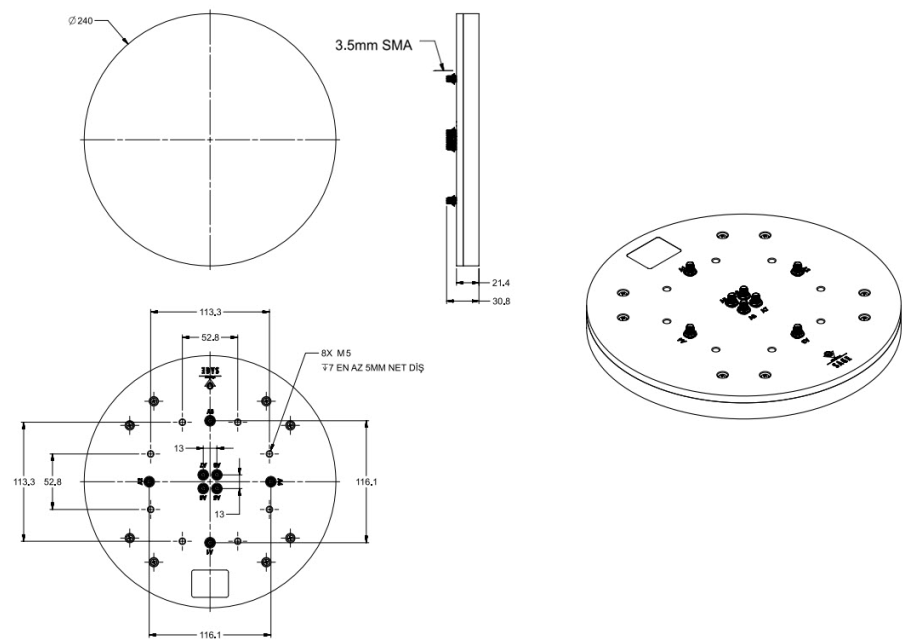

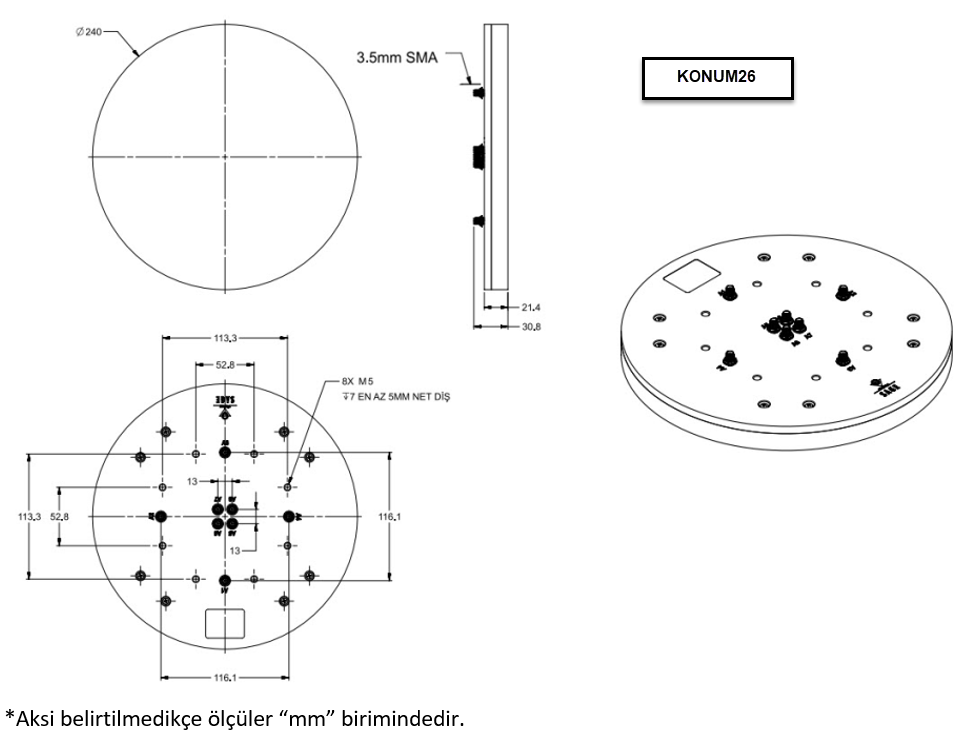

KONUM26
PASSIVE - GPS L1 - GLONASS G1 or GPS L1/L2-GLONASS G1 - 8 Elements Array
The antenna provides The Global Positioning System (GPS) signal reception in the GPS L1 and GLONASS G1 or GPS L1/L2 and GLONASS G1 frequency bands. The rugged enclosure can withstand harsh environmental conditions seen in military, aerospace and other applications.
- The antenna has dual feed ceramic technology which provides truly circular response over entire antenna bandwidth.
- Dual feed provides superior rejection of cross polarized signals (multi-path).
TÜBİTAK-SAGE has ability to produce alternative solutions for fixed radiation pattern Global Positioning System (GPS) antenna with different bands and geometries to meet your specific requirements.
* The antenna is designed and produced to meet requirement of MIL-STD-810G for different platforms.
KONUM26 Technical Specifications
Electrical
Frequency
GPS L1/GPS L2 GLONASS G1
Number of Elements
8
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Right Hand Polarization
Antenna Gain
3 dBic (typical)
Antenna Pattern
Hemispherical
Mechanical and Environmental
Weight
1,760 g (max)
Temperature
-55°C to +85°C
Connector (Optional)
SMA-Female
Color (Optional)
Gloss White, Black, Camo green etc.
High Temperature Radome (Optional)
Typical 400 °C
