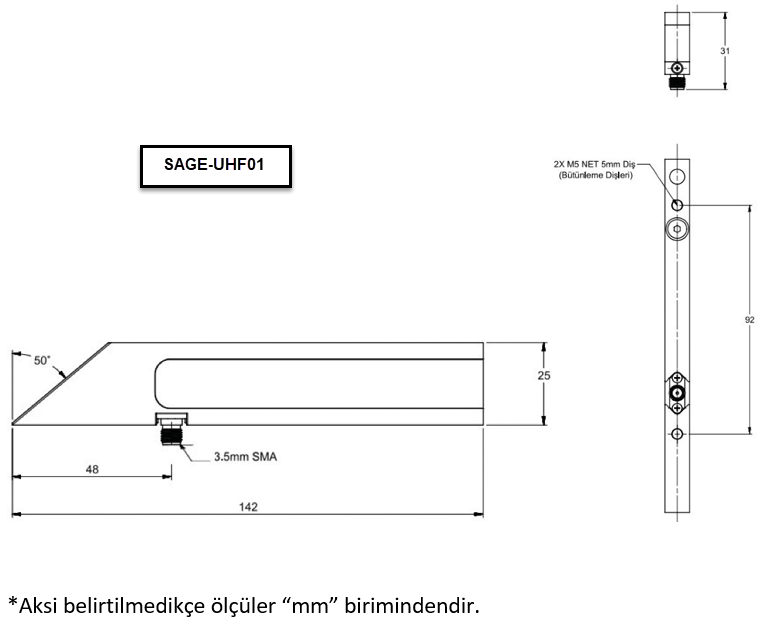

SAGE-UHF01
SAGE-Blade antennas have a 360-degree radiation pattern on the horizontal axis. They are light and small. They are resistant to high temperatures thanks to thermal insulation. Our antennas are designed to provide low air friction.
Our antennas can be mechanically tuned to center frequencies to be used in flight termination (UHF-band), telemetry (S-band), friend or foe identification systems (IFF antenna) (L-band). Thanks to its special design, it is suitable for use in airplanes, drones, missiles, etc.
As TÜBİTAK SAGE, we are capable of producing alternative solutions for antenna production in different geometries and bands to meet your specific requirements.
*Our antennas are manufactured for different platforms to meet MIL-STD-810G standard.
SAGE-UHF01 Technical Specifications
Electrical (on 240 x 240 mm aluminum plate)
Frequency
Factory-set center frequency 370 MHz- 500 MHz range, 2.5 MHz bandwidth
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Linear (Vertical)
Antenna Element Gain
0 dBi (typical)
Antenna Pattern
Directionless
Mechanical and Environmental
Weight
75 g (max)
Temperature
-90°C to +400°C (5 minutes)
Connector (Optional)
SMA-Female

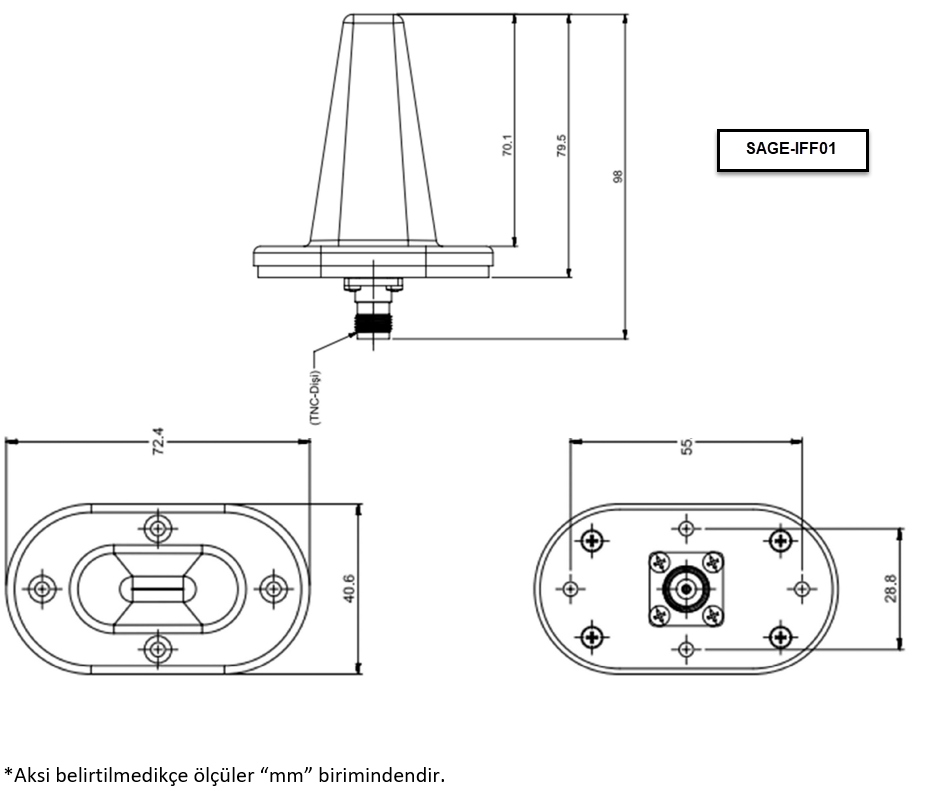

SAGE-IFF01
SAGE-Blade antennas have a 360-degree radiation pattern on the horizontal axis. They are light and small. They are resistant to high temperatures thanks to thermal insulation. Our antennas are designed to provide low air friction.
Our antennas can be mechanically tuned to center frequencies to be used in flight termination (UHF-band), telemetry (S-band), friend or foe identification systems (IFF antenna) (L-band). Thanks to its special design, it is suitable for use in airplanes, drones, missiles, etc.
As TÜBİTAK SAGE, we are capable of producing alternative solutions for antenna production in different geometries and bands to meet your specific requirements.
*Our antennas are manufactured for different platforms to meet MIL-STD-810G standard.
SAGE-IFF01 Technical Specifications
Electrical (on 600 x 700 mm aluminum plate)
Frequency
960-1215 MHz
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Linear (Vertical)
Antenna Element Gain
≥ 3 dBi (typical)
Antenna Pattern
Directionless
Mechanical and Environmental
Weight
120 g (max)
Temperature
-55°C to +80°C
Connector (Optional)
SMA-Female, TNC-Female
Color (optional)
White, Black, Green etc.

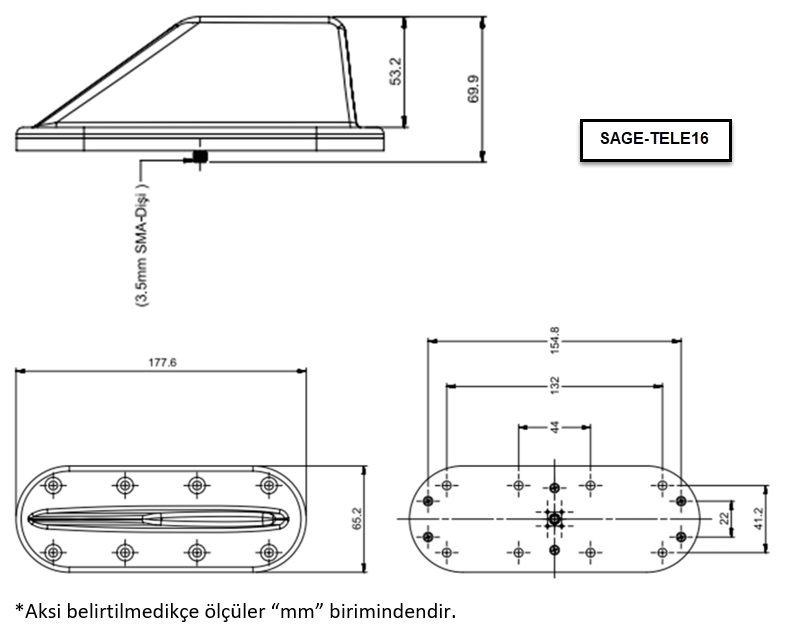

SAGE-TELE16
SAGE-Blade antennas have a 360-degree radiation pattern on the horizontal axis. They are light and small. They are resistant to high temperatures thanks to thermal insulation. Our antennas are designed to provide low air friction.
Our antennas can be mechanically tuned to center frequencies to be used in flight termination (UHF-band), telemetry (S-band), friend or foe identification systems (IFF antenna) (L-band). Thanks to its special design, it is suitable for use in airplanes, drones, missiles, etc.
As TÜBİTAK SAGE, we are capable of producing alternative solutions for antenna production in different geometries and bands to meet your specific requirements.
*Our antennas are manufactured for different platforms to meet MIL-STD-810G standard.
SAGE-TELE16 Technical Specifications
Electrical (on 240 x 240 mm aluminum plate)
Frequency
1200-2800 MHz, 2200-2700 MHz
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Linear (Vertical)
Antenna Element Gain
≥ 2 dBi (typical)
Antenna Pattern
Directionless
Mechanical and Environmental
Weight
280 g (max)
Temperature
-55°C to +80°C
Connector (Optional)
SMA-Female, TNC-Female
Color (optional)
White, Black, Green etc.

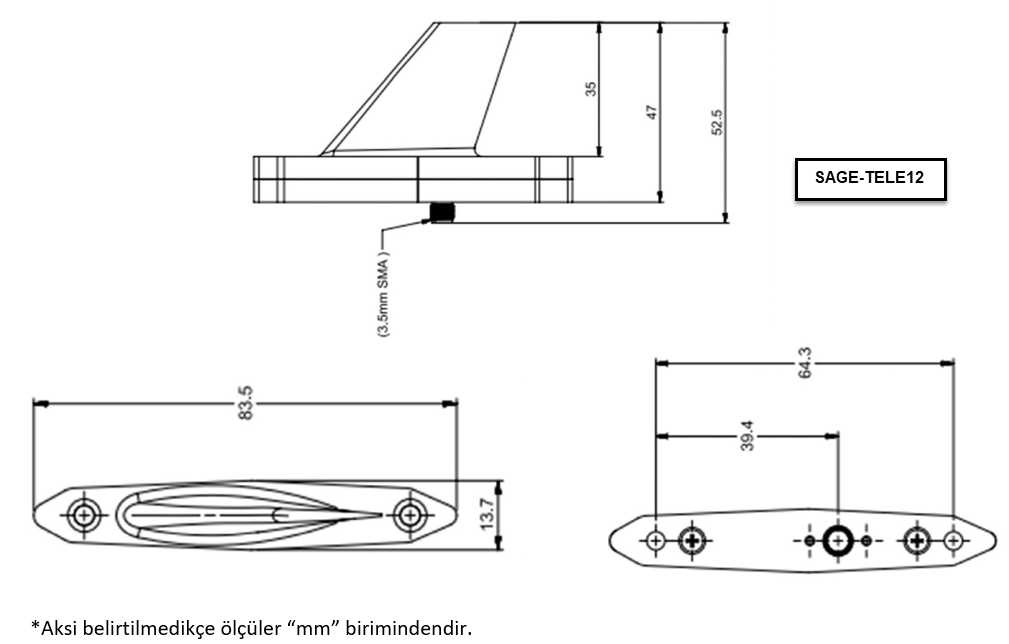

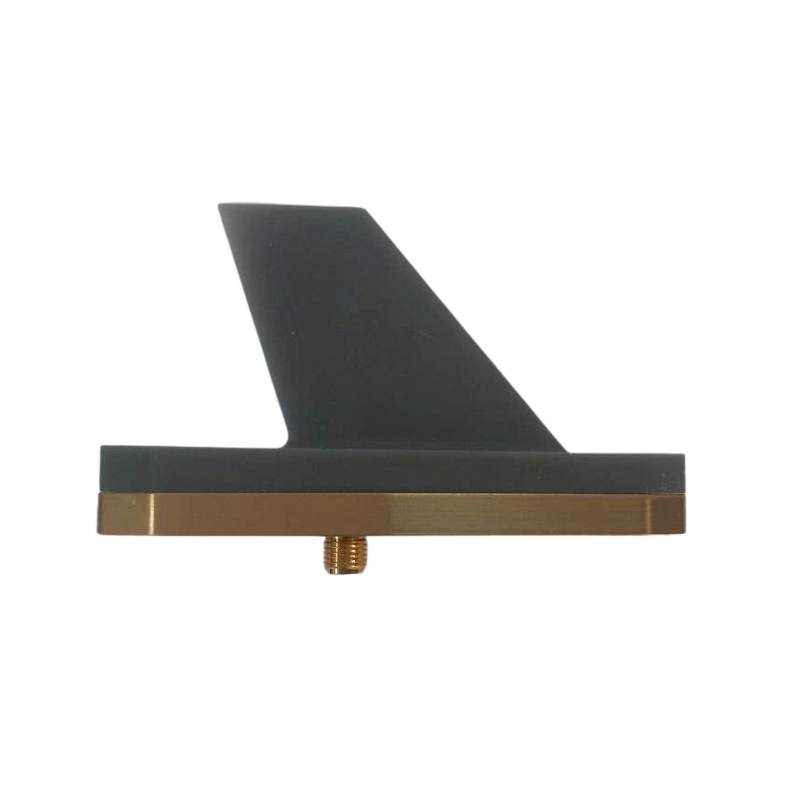

SAGE-TELE12
SAGE-Blade antennas have a 360-degree radiation pattern on the horizontal axis. They are light and small. They are resistant to high temperatures thanks to thermal insulation. Our antennas are designed to provide low air friction.
Our antennas can be mechanically tuned to center frequencies to be used in flight termination (UHF-band), telemetry (S-band), friend or foe identification systems (IFF antenna) (L-band). Thanks to its special design, it is suitable for use in airplanes, drones, missiles, etc.
As TÜBİTAK SAGE, we are capable of producing alternative solutions for antenna production in different geometries and bands to meet your specific requirements.
*Our antennas are manufactured for different platforms to meet MIL-STD-810G standard.
SAGE-TELE12 Technical Specifications
Electrical (on 240 x 240 mm aluminum plate)
Frequency
2200-2700 MHz
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Linear (Vertical)
Antenna Element Gain
≥ 2 dBi (typical)
Antenna Pattern
Directionless
Mechanical and Environmental
Weight
30 g (maximum)
Temperature
-55°C to +80°C
Connector (Optional)
SMA-Female
Color (optional)
White, Black, Green etc.

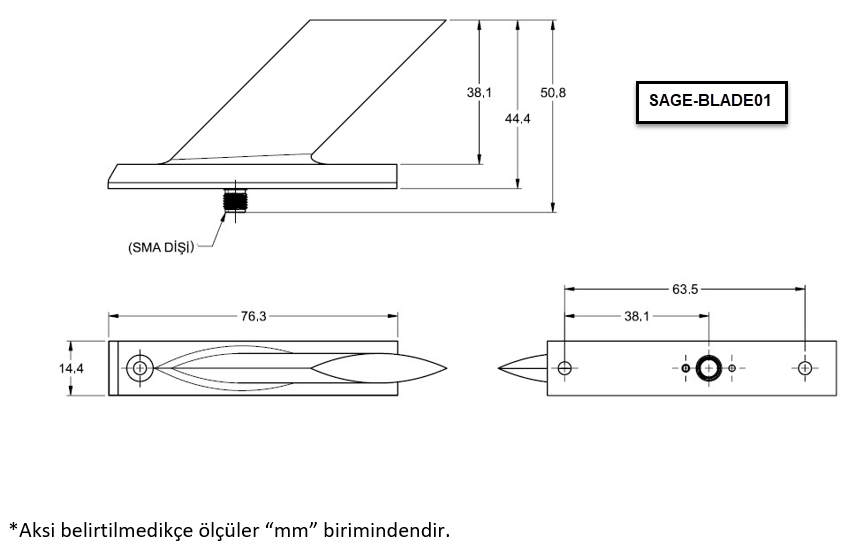

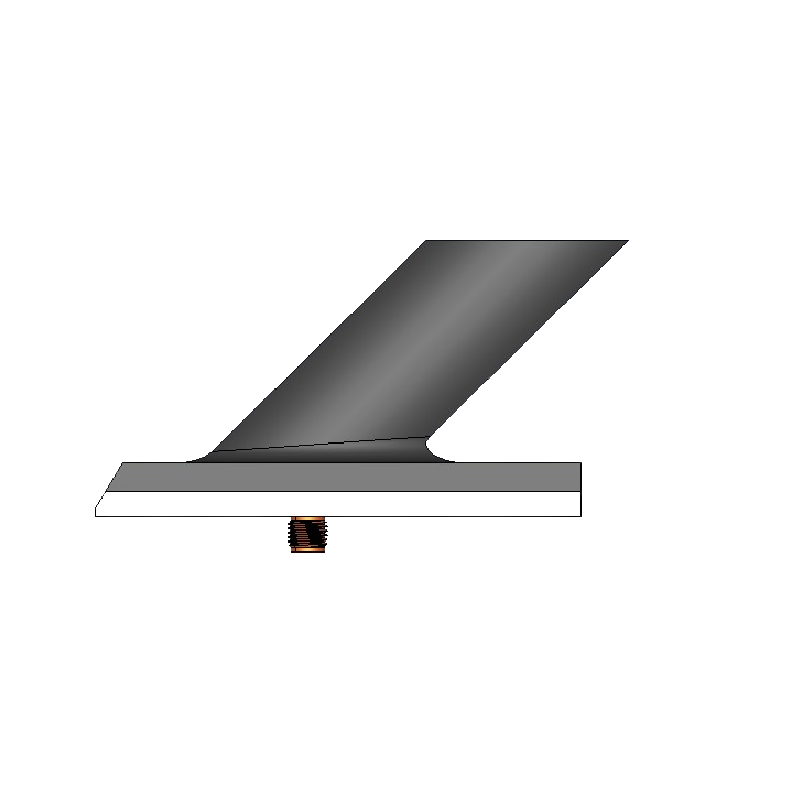

SAGE-BLADE01
SAGE-Blade antennas have a 360-degree radiation pattern on the horizontal axis. They are light and small. They are resistant to high temperatures thanks to thermal insulation. Our antennas are designed to provide low air friction.
Our antennas can be mechanically tuned to center frequencies to be used in flight termination (UHF-band), telemetry (S-band), friend or foe identification systems (IFF antenna) (L-band). Thanks to its special design, it is suitable for use in airplanes, drones, missiles, etc.
As TÜBİTAK SAGE, we are capable of producing alternative solutions for antenna production in different geometries and bands to meet your specific requirements.
*Our antennas are manufactured for different platforms to meet MIL-STD-810G standard.
SAGE-BLADE01 Technical Specifications
Electrical (on 240 x 240 mm aluminum plate)
Frequency
1350-1545 MHz
VSWR
< 2.0 : 1
Impedance
50 ohms
Polarization
Linear (Vertical)
Antenna Element Gain
≥ 2 dBi (typical)
Antenna Pattern
Directionless
Mechanical and Environmental
Weight
35 g (maximum)
Temperature
-55°C to +80°C
Connector (Optional)
SMA-Female
Color (optional)
White, Black, Green etc.
